SUPER MUD
Polymer for Soil Conditioning
SUPER MUD
SUPER MUD is an advanced soil conditioning agent engineered for EPB Shield TBM operations, designed to improve the workability and stability of excavated soil under a wide range of ground conditions. By adjusting the applied concentration, SUPER MUD can provide either viscosity reduction or controlled thickening, allowing effective management of soil rheology during excavation. Its film-forming action enhances water retention, helping maintain stable conditioning performance within the excavation chamber. This contributes to preventing soil blow-out at the tunnel face and adhesion of excavated soil to the cutterhead and chamber, while maintaining optimal plasticity and flowability of the conditioned soil. As a result, the excavated material can be discharged smoothly through the screw conveyor, supporting stable and efficient TBM operation.
-

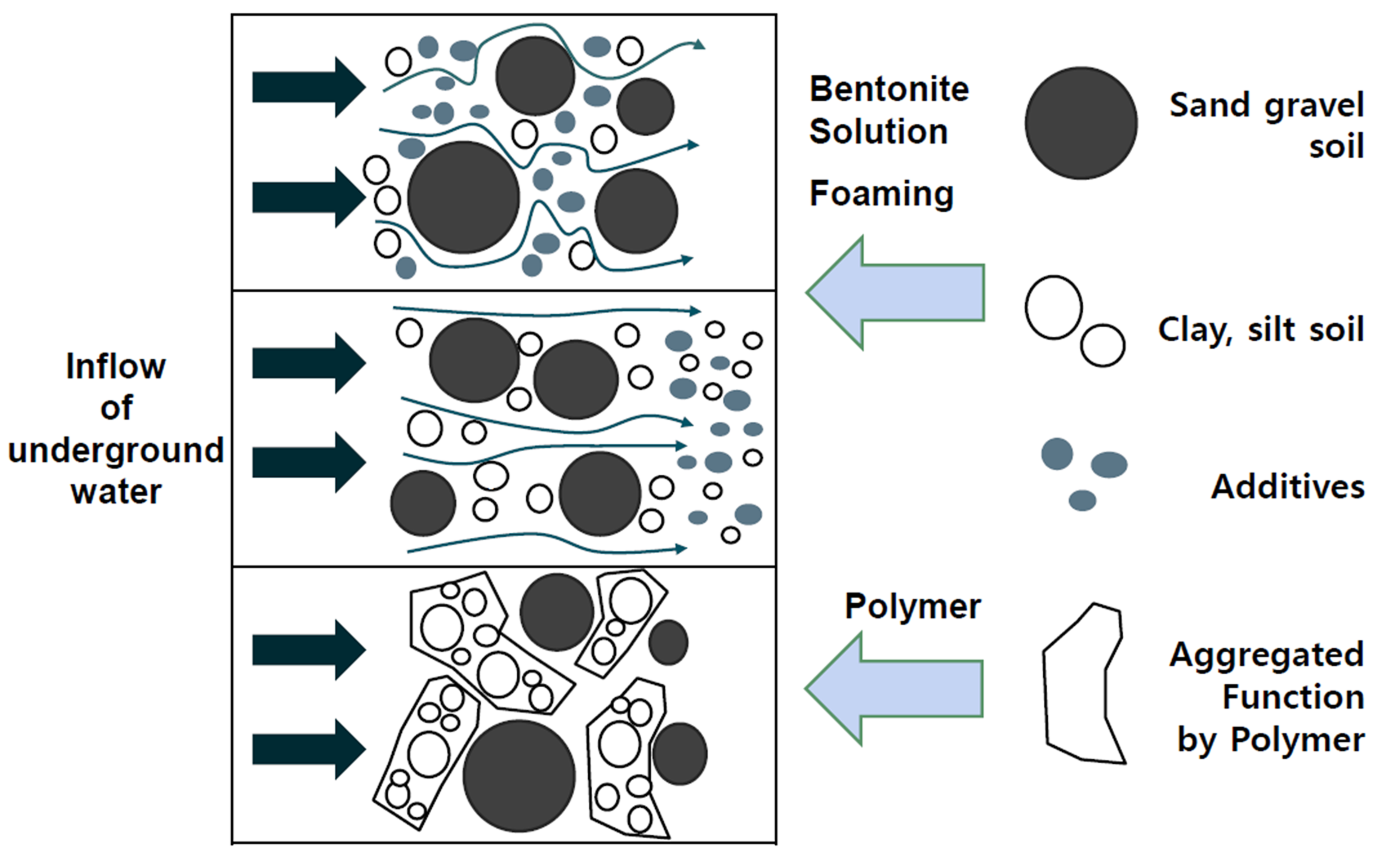

Before Polymer Addition
-
After Polymer Addition
Product Features
-
1
Easy Mixing - Liquid Formulation
Supplied in liquid form for fast and uniform mixing, allowing easy handling and rapid application under various site conditions.
-
2
High Viscosity with Low Dosage
Its highly concentrated formulation maintains sufficient viscosity even at low dosage, helping stabilize chamber pressure and effectively prevent face instability.
-
3
Reduced Excavation Resistance & Anti-Adhesion
During excavation in clay and silt formations, SUPER MUD promotes soil particle dispersion and lubrication, preventing adhesion to the chamber and cutterhead while reducing cutter torque and thrust force.
-
4
Stable Long-Distance Pumping
In sand and gravel formations, its viscous gel behavior improves soil flowability, enabling stable conveying and long-distance pumping of conditioned soil.
Package
20 kg Steel Can / IBC Tank
